Heat transfer | Heat recovery | Energy efficiency

Industrial Electric Air Heaters

Custom electric heating units for process air and other gaseous media, with stainless steel heating rods, temperature monitoring and outlet temperatures up to 400 °C.

[email protected] · +41 78 722 2200

Your process. Your requirements.

Built around the application.

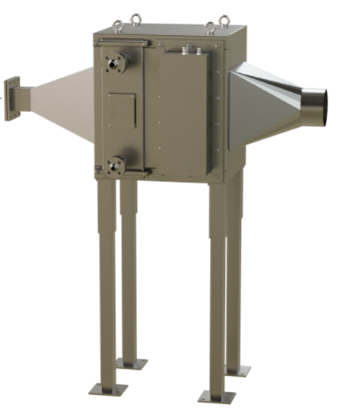

Anytherm electrical heaters convert electrical energy into process heat using heating rods in the air stream. They can form a standalone heating stage or be combined with water heating, steam heating and heat recovery in a complete air handling unit.

Features & options

  • Custom design for the specified process air and electrical heating duty.
  • Fully welded, insulated stainless steel housing with sanitary design.
  • Extractable elements for service access.
  • Sheathed NiCr-Ni thermocouples and limiting sensors to monitor temperature and protect the heating rods.

Technical overview

Design data & materials

ParameterDesign / scope
Air mass flowUp to 150,000 kg/h per unit
Air discharge temperatureUp to 400 °C, subject to the agreed operating conditions
HousingAISI 304 or AISI 316 stainless steel
Heating elementsStainless steel heating rods; material selected for the duty
InsulationMineral wool
Indicative design information. Published limits depend on the duty, materials and configuration and do not necessarily apply simultaneously. Final performance is confirmed for the agreed operating conditions.

Why Anytherm

Process understanding.
Practical engineering.
Personal support.

We work through the requirements with your team and develop a scope that fits the process, installation and operating needs.

Discuss your requirements with our engineers ↗

Integrated process heating

Electrical heating can be combined with our air handling and heat recovery equipment.

Temperature monitoring included in the design

Thermocouples and limiting sensors support the specified operating and protection functions.

Custom industrial construction

Housing, elements and access are adapted to the process duty and installation constraints.

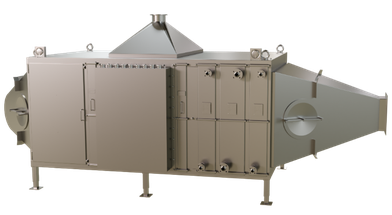

Combine electrical heating with preheating

Recovered heat or a hot water stage can preheat incoming air before the electrical heater provides the final temperature increase. The arrangement depends on the available heat sources and required operating flexibility.

Define the electrical and process interfaces

Airflow, required temperature rise, electrical supply and control interfaces need to be coordinated during design. The heater and its monitoring arrangement are selected for the agreed operating scenarios.

A closer look

Project examples & equipment details

Select an image to enlarge it. Configurations shown are examples; the final scope is tailored to the project.

Before your enquiry

Practical questions

Can electric heating supplement another heat source?

Yes. Electrical heaters can be combined with hot water, steam or heat recovery stages to achieve the required air temperature.

Does electrical heating automatically reduce CO₂ emissions?

The result depends on the electricity supply, the heat source being replaced and the operating duty. These should be evaluated for the actual project.

What should I include in my enquiry?

Include the air mass flow, inlet and required outlet temperatures, electrical supply, operating scenarios, installation dimensions and control requirements.

Share what you already know. You do not need a complete specification to start the discussion.
