High Pressure Units

Main Features

  • Unit for handling pressurized prozess air (e.g. after blower) according to the clients process demands
  • Applicable with finned tube heat exchanger elements, pump with valves, filters, etc.
  • Customized according to client specification and request
  • Insulated housing (fully welded, sanitary design) and extractable elements
  • If required, water circulation with constant water flow and bypass system for stable regulation of air temperatures can be added
  • Units can be designed in rectangular or round design

Selected Project References

Click on the images to enlarge.

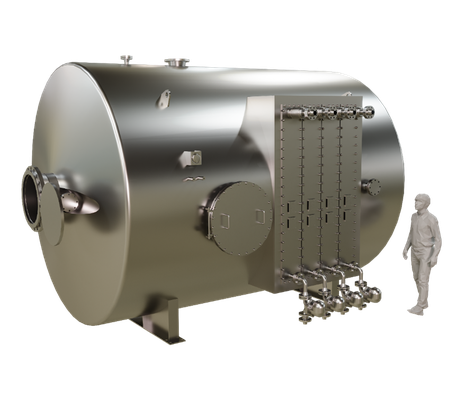

High Pressure Heat Exchanger Unit
Exemplary High Pressure Heat Exchanger Unit

Materials And Characteristic Values

  • Housing: Stainless steel (AISI 304 or AISI 316) with mineral wool insulation
  • Finned tubes: Stainless steel (AISI 304 or AISI 316)
  • Fins: Aluminum or stainless steel
  • Air volume: designed for lower, high pressure flows
  • Air temperatures: depending on application and additional equipment, different air temperatures are possible
  • Air pressures of up to 1 bar overpressure

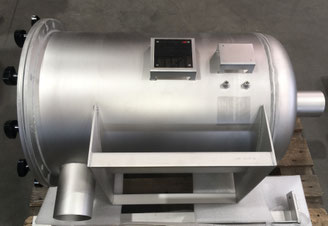

Fines Return Unit for Spray Drying Applications

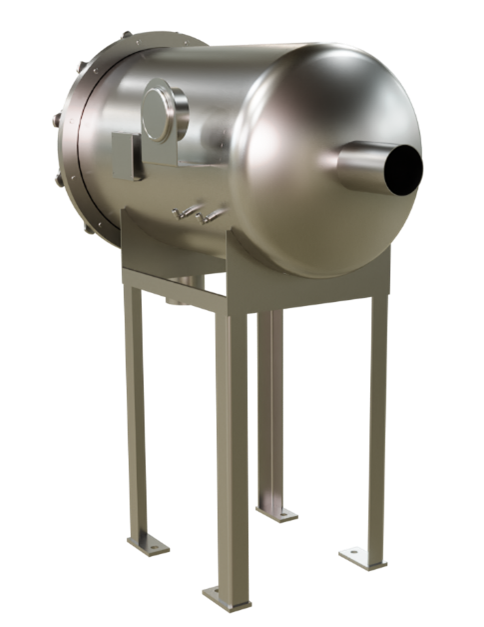

Exemplary execution of a Fines Return Unit
