Air Handling Units

Basically, most of our heat exchanger units for process air treatment can be classified as "Air Handling Units" (e.g. Air Intake Units, Sorption Dehumidification Units, Steam Air Heater Units). Providing customized process equipment only, many units look similar but never the same.

Main Features

  • Unit for process air handling according to the clients process demands
  • Applicable with finned tube heat exchanger elements, filters, fans, etc.
  • Customized according to client specification and request
  • Insulated housing (fully welded, sanitary design) and extractable elements

Selected Project References

Click on the images to enlarge.

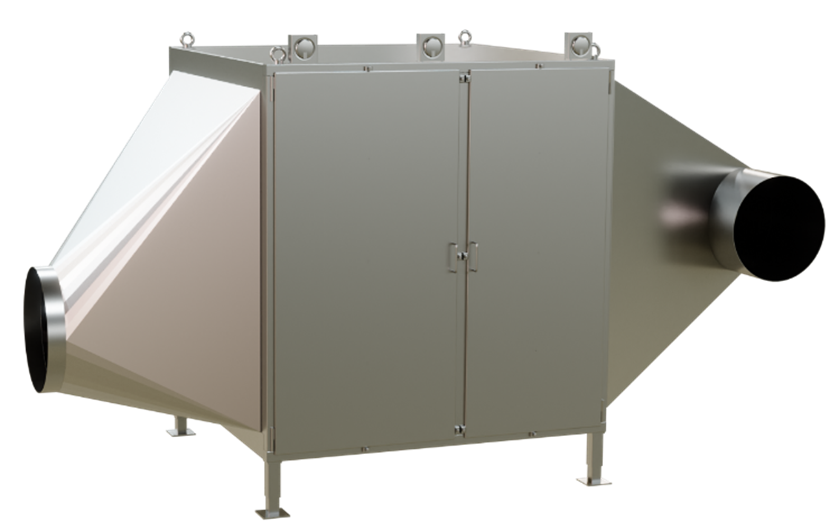

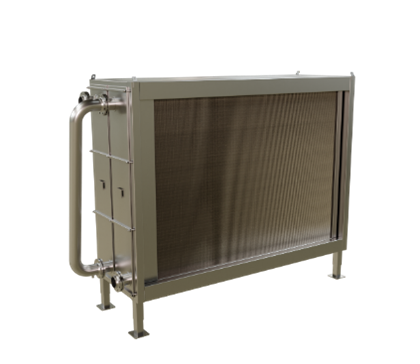

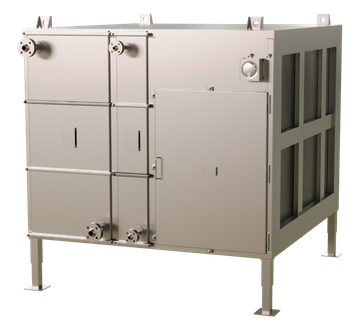

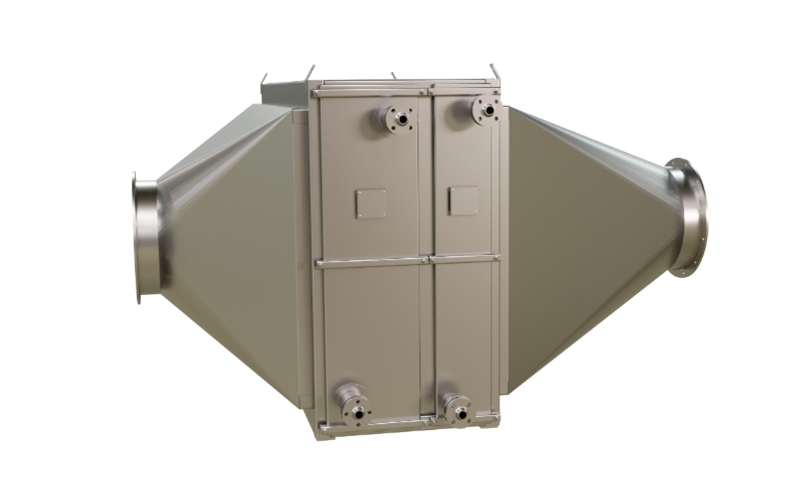

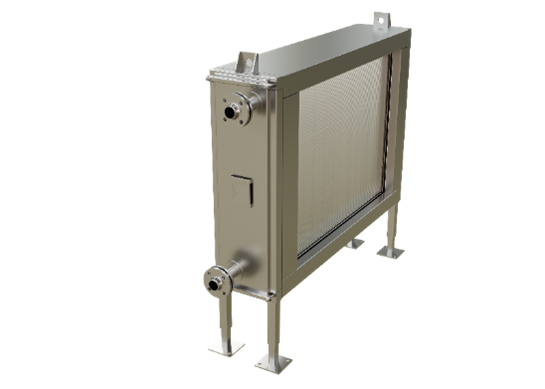

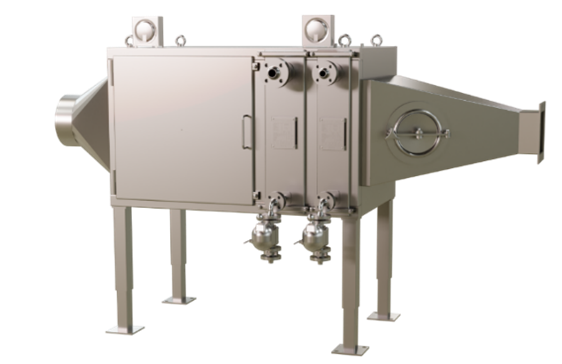

Exemplary Air Handling Unit
Exemplary Air Handling Unit

Materials And Characteristic Values

  • Housing: Stainless steel (AISI 304 and AISI 316) with mineral wool insulation
  • Finned tubes: Stainless steel (AISI 304 or AISI 316)
  • Fins: Aluminum or stainless steel
  • Air volume: up to 200’000 kg/h per device
  • Air temperatures: depending on application and additional equipment, different air temperatures are possible
