DELIVERY OF 3 BIG AIR INTAKE, FAN AND STEAM AND ELECTRICAL MAIN AIR HEATER UNITS; SUCCESSFUL COMMISSIONING OF THE FIRST AIR INTAKE-FAN-MAIN AIR HEATER COMBO IN SCANDINAVIA
During the last weeks, Anytherm delivered a large project consisting of three big air intake units and three big main air heater units to a customer in Scandinavia. Two weeks ago, the first air intake and main air heater units of the project were successfully comissioned and are running smoothly.
The project specs are impressive: Unit weights of 20’000, 27’000 and 40’000 kg and air massflows of 76’000, 102’000 and 160’000 kg/h, filtering and heating production air from -20°C to +260°C at steam pressures of approx. 30 barg.

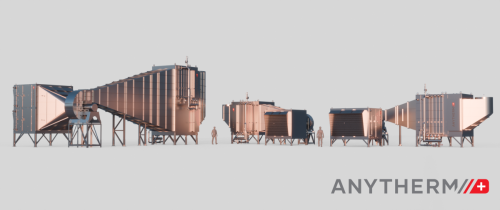

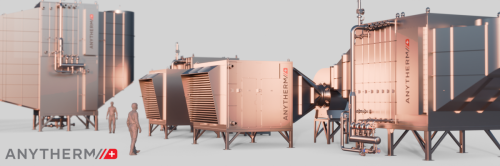

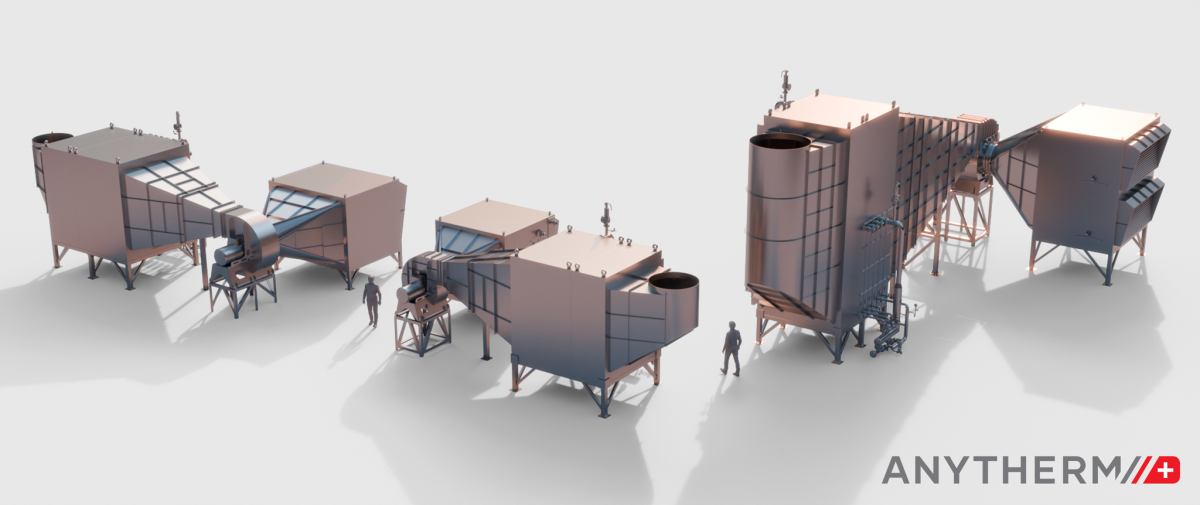

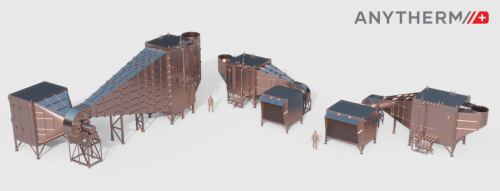

The air intake units consist of winter coils, G4 and F7 filter stages and noise absorbers followed by large fans. The main air heater units consist of water preheaters, steam, flash steam, and condensate stages as well as large electrical heaters including complete thyristor control units. Furthermore, Anytherm was responsible for engineering services such as FE analysis for snow and wind loads, transport to the customer, installation and commissioning supervision, and more – providing our customer with an optimal service in close cooperation during this very exciting project.
